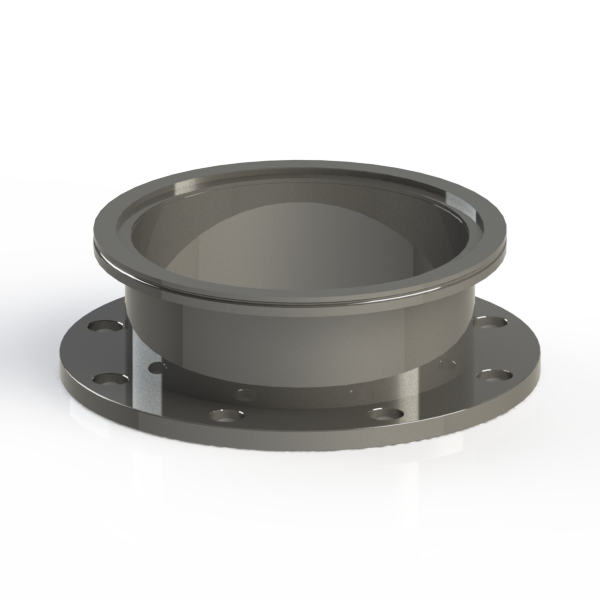

Adapter Reducer LF200 NW ISO200 to ASA 6 inch, ASA O.D. 11 inches, NO O-Ring Groove, SS
Click for larger images.
Print Version
Adapter Reducer ISO-200 to ASA 6 in. Vacuum Fittings, ISO-LF Flange Size NW-200 to ASA 6 in., Stainless Steel

These ISO to ASA adapter reducer vacuum fittings follow International Standards Organization (ISO) and ASA/ANSI standards. They have a flange sizes of NW-200 to ASA/ANSI 6 inch. ISO LF flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw or single clamps and a centering ring (please see top right figure - click to enlarge). This ASA/ANSI flange side has NO O-Ring Groove.

The primary dimension of the ASA/ANSI flange is the Outer Diameter O.D. whether the term ASA or ANSI is used. The Viton® centering ring for the ISO side requires a rubber/elastomeric o-ring for vacuum. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum flages are made of stainless steel. See graphic chart below for mating of ISO LF and ASA/ANSI options.

Adapter, NW-200 to ASA 6 in. Vacuum Fittings, ISO-LF Flange Size NW-200 to ASA 6 in., Stainless Steel
ISO-LF Flange Size: NW-200 to ASA 6" Without O-Ring Groove

Common Dimensions:
A = 4.42"(127mm)
B = 7.76"(197mm)
C = ASA/ANSI O.D. 11.00"(279mm)

3D CAD Model
Adapter Reducer LF200 NW ISO200 to ASA 6 inch, ASA O.D. 11 inches, NO O-Ring Groove, SS

Ideal Vacuum Products offers 3D CAD models (in Solidworks SLDPRT, STP, & STEP formats) for our standard Conflat (CF), QF (NW) ISO-KF, ISO-LF (MF), and ASA vacuum fittings & flanges. You have instant access to thousands of downloadable 3D CAD engineering files for our vacuum pumps, components, and systems available for download on each products web page. For those without CAD software a free trial 3D step model viewer with measurement capabilities can be downloaded here: eDrawings sldprt Viewer For Windows or eDrawings sldprt Viewer For MAC.


  http://www.idealvac.com/files/cad/P101744.sldprt
  http://www.idealvac.com/files/cad/P101744.step
Product: Adapter Reducer LF200 NW ISO200 to ASA 6 inch, ASA O.D. 11 inches, NO O-Ring Groove, SS
Condition: New
Warranty: Against Product Defect
Part Number: P101744
Sale Price:$647.50
